| Name |
DWDM Module |
| Channel number |
8CH |
16CH |
| Return Loss |
≥50 |
≥45 |
| PDL |
≤0.2 |
≤0.15 |

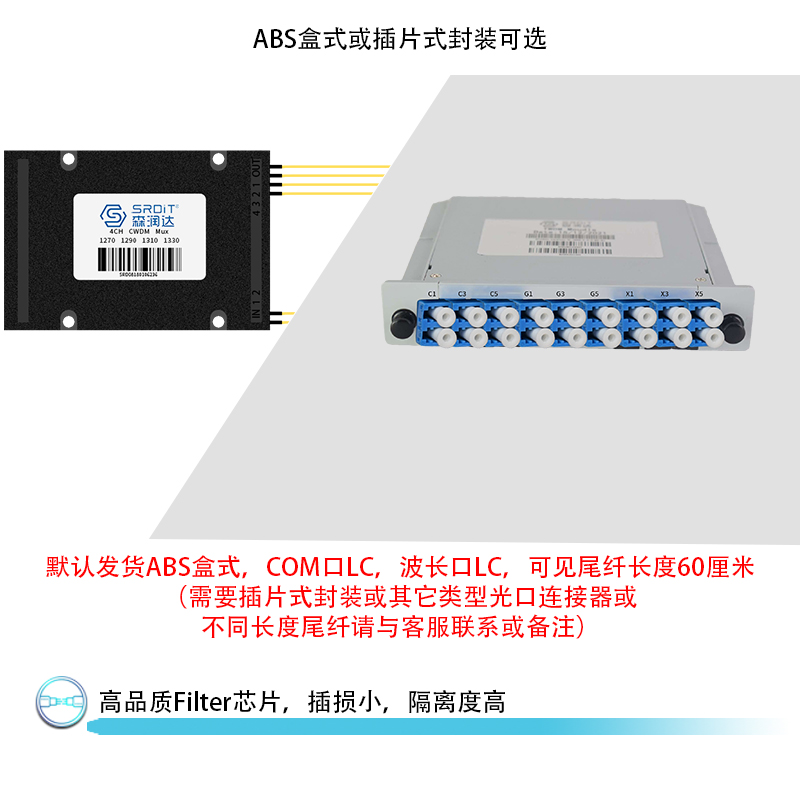

| Package Dimension(L x W x H) |
100x80x10mm |
120x80x18mm |
| Insertion Loss*
|
COM->CHX /CHX->COM |
≤3.2 |
COM->CHX /CHX->COM |
≤5.0 |
| COM->UPG /UPG->COM |
≤2.8 |
COM->EXP /EXP->COM |
≤1.8 |

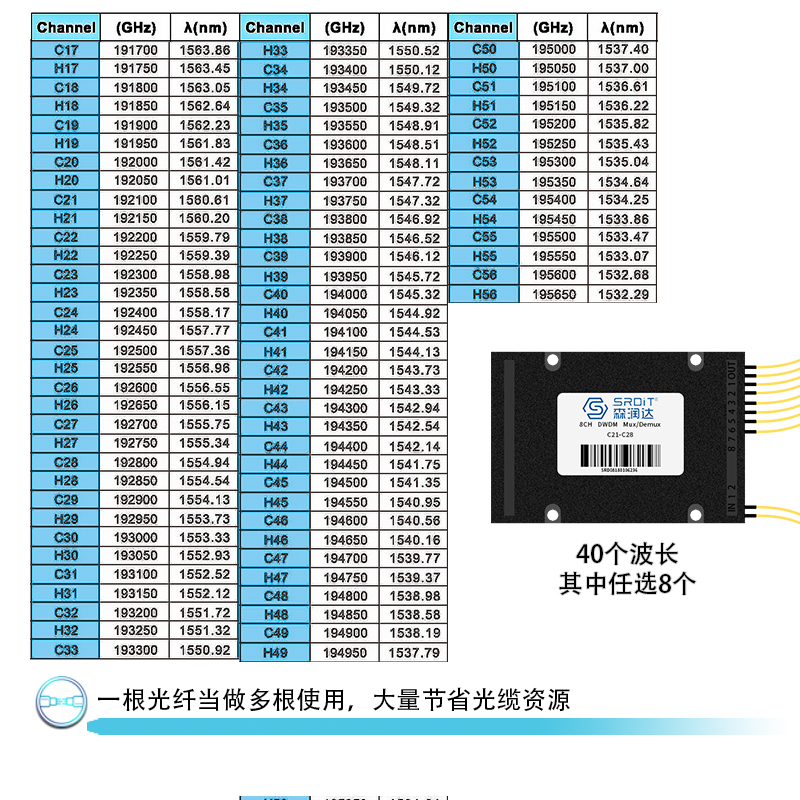

| Center Wavelength |
ITU-T Grid |
| Operating Wavelength Range |
1500~1620nm |
| Channel Space |
100GHz (0.8nm) / 200GHz (1.6nm) |
| Passband @0.5dB |
λc ± 0.11 / λc ± 0.22 |
| Center Wavelength Accuracy |
λc ± 0.11 / λc ± 0.22 |
| Passband Flatness |
<0.5 |
| Isolation (Adjacent) |
≥30 |
| Isolation (Non-Adjacent) |
≥45 |
| Directivity |
≥50 |
| PMD |
≤0.1 |
| Insertion Loss Temperature Sensitivity |
<0.002 |
| Wavelength Temperature Shifting |
<0.001 |
| Pigtail Diameter |
0.9/2 |
| Pigtail Length |
≥100 |
| Connector Type / Loss |
LC/FC/SC/ST ≤0.4 |
| Power Handling |
≤300 |
| Fiber Type |
SMF-28e |
| Operating Temperature |
-40~+85℃ |
| Storage Temperature |
-40~+85℃ |
